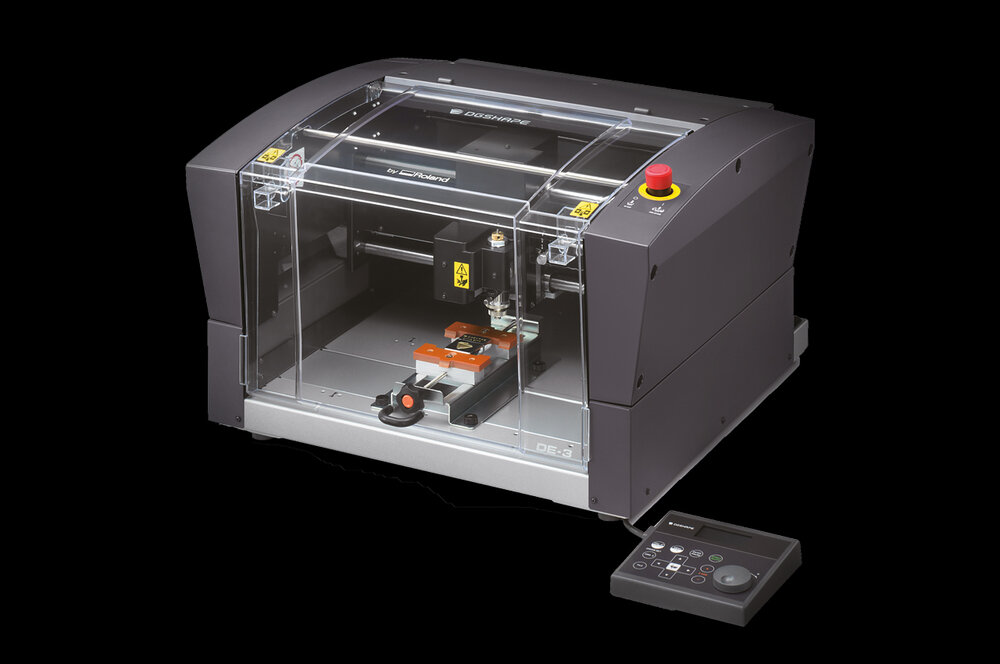

Roland DE-3
The DE-3 desktop engraver uses over 30 years of innovation in engraving technology to deliver impressive versatility and fast, user-friendly automated production.
With laser-pointing technology, automatic depth regulation and other intelligent and intuitive features, the DE-3 produces precise text and graphics onto a huge range of materials and objects. It's the ideal desktop engraving solution for today's user.
High Performance Features
Accurate Personalisation
A laser pointer accurately defines the origin point and displays an engraving path preview on the media – set the engraving position at the touch of a button.
Precision Engraving
Easy-to-apply nose cones can be added to the spindle unit to automatically regulate engraving depth on the media surface, delivering consistently precise results.
Fast and Easy Production
Powered by a 20,000 rpm DC brushless motor, the DE-3 harnesses advanced surface detection and other automatic features to make set-up and engraving quick and simple.
Remote Connectivity
Select options such as spindle speed and one-touch machine cleaning without the need for a computer with a hand-held control. Engraving job data can be sent from your computer and stored in the controller after the PC is disconnected.
Specifications
| Model | DE-3 | |
| Work table size | 305 mm x 230 mm | |
| Maximum work area (Work envelope) | X, Y, Z：305 mm × 230 mm × 40 mm | |
| XYZ axis drive system | Stepper motor, 3-axis simultaneous control | |
| Operating speed | XY axis: | 0.1-60 mm/sec. |
| Z axis: | 0.1-30 mm/sec. | |
| Software resolution | 0.01 mm/step | |
| Mechanical resolution | XYZ-axis: | 0.00125 mm/step |
| Spindle motor | Brushless DC Motor | |
| Spindle speed | 5000-20000 rpm | |
| Tool loading | Cutter Holder, Collet Type | |
| Maximum material thickness | 40 mm（38 mm when using the nose cone） | |
| Connection | USB | |
| Machine language | RML-1 | |
| Power supply | Voltage and frequency | AC 100 to 240V ±10%, 50/60 Hz (overvoltage category: II, IEC 60664-1) |
| Rated current | 1.0 A | |
| Power consumption | 80 W | |
| Operating noise | During operation | 60 dB（or less) |
| During standby | 40 dB（or less) | |
| External dimensions | 616 mm × 587 mm × 390 mm | |
| Machine weight |
35 kg |
|
| Installation environment | Indoor use, altitude: 2000 m or less, Temperature 5 to 40 °C, humidity 35 to 80% (no condensation), Environment pollution degree 2 | |
| Included items | DGSHAPE software package CD, Power cable, Power adapter, USB cable, Nose cone unit (resin / metal components), Nose unit set screw (fixing screw, spring), Spare set screw (for cutter holder), Solid collet (∅ 3.175 mm), Spanner wrench, Hex wrench, Hex driver, Adhesive sheet, Dust collector adapter, Setup Guide | |

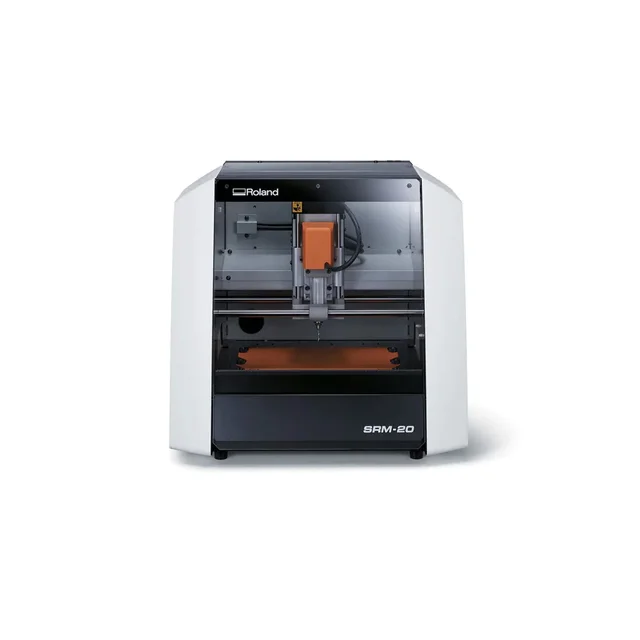

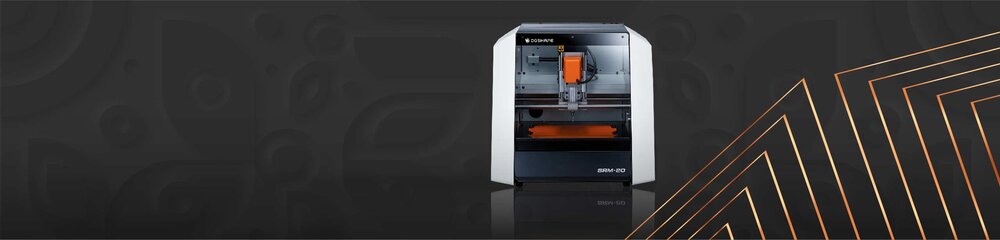

Roland SRM-20
As a small milling machine, the SRM-20 offers compact size and powerful functionality at an affordable price. Production of realistic parts and prototypes is made simple and convenient with a device that fits into any office, studio, or classroom environment. For users looking for advanced milling capabilities without the need for expert operating skills, the SRM-20 is one of the easiest and most precise CNC mills in its class.
Download brochure
SRM-EKIT Engraving options for SRM-20
Discover all the benefits you can get with the new SRM-20 EKIT. A simple-to-use engraving solution:
Flexible and rigid laminate engraving and profiling
V-carve capability, particularly in wood

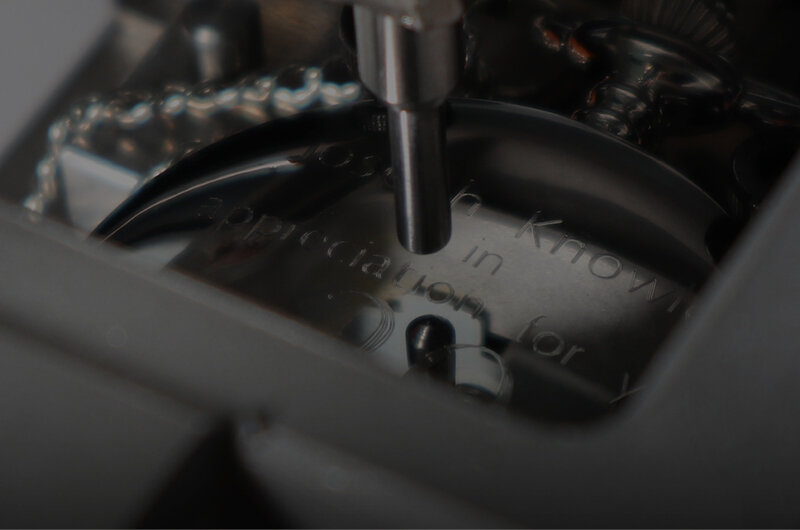

Diamond drag engraving on flat and curved metal surfaces (not cylindrical).
Shape your new business with new applications.
Milling Made Easy
Independent Collet System for Efficient Milling
It’s no longer necessary to change spindles every time there’s a different end mill shank diameter. Now you can replace the collet chuck in order to match the shank diameter for fast setting of the Z-axis base point and for quick tool changes.
Fully Enclosed
The SRM-20 has a fully-enclosed cabinet that reduces dust and noise and features a side-window for easy progress viewing. It also features an intelligent safety interlock to that automatically pauses the machine when the cover is opened, permitting milling to resume upon closing the cover and selecting “continue”.
Smart & Rugged
The SRM-20 includes the very latest CNC milling features such as airtight sealing technology to prevent waste material from getting inside the spindle and Y-axis, making it resistant to the effects of milling debris and adding durability for long-term operation.
Personalise Hundreds of Items
The NEW SRM-EKIT allows you to expand your products range: Gifts and picture frames, Funeral plates, Professional name plates and inauguration plaques, CE marking and serial number plates, Interior signs and safety signs, Exterior signs, House numbers and cover plates, Production process plates, Electrical switch boxes, sockets and switches, Warehouse signage and labels, Personalised badges and pet tags, Control panels and keypads, Trophy plates, shields and scrolls, Commemorative plates and plaques, Elevator plates, Room and table numbers and key tags, Painting stencils.
Specifications
| Model | SRM-20 |
| Cuttable Material | Modelling Wax, Chemical Wood, Foam, Acrylic, Poly acetate, ABS, PC board |
| X, Y, and Z Operation Strokes | 203.2 (X) x 152.4 (Y) x 60.5 (Z) mm |
| Workpiece table size | 232.2 (X) x 156.6 (Y) mm |
| Distance From Collet Tip to Table | Max, 130.75mm (5.15 in) |
| Loadable Workpiece Weight | 2 kg (4.4 lb) |
| X-, Y-, and Z-Axis Drive System | Stepping motor |
| Operating Speed | 6 - 1800mm/min 0.24 - 70.87inch/min |
| Software Resolution | 0.01 mm/step (RML-1), 0.001mm/step (NC code) 0.000039 inches/step (RML-1), 0.000039 inches/step (NC code) |
| Mechanical Resolution | 0.000998594 mm/step 0.0000393 inches/step |
| Spindle Motor | DC motor Type 380 |
| Spindle Rotation Speed | Adjustable 3000 - 7000 rpm |
| Cutting Tool Chuck | Collet method |
| Interface | USB |
| Control Command Sets | RML-1, NC code |
| Power Requirements | Machine: DC24V, 2.5A, Dedicated AC adapter: AC 100-240 V ±10%, 50/60 Hz |
| Power Consumption | Approx. 50 W |
| Operating Noise | During operation: 65 dB (A) or less (when not cutting), During standby: 45 dB (A) or less |
| External Dimensions | 451.0 (W) x 426.6 (D) x 426.2 (H) mm |
| Weight | 19.6 kg (43.2 lb) |
| Installation Environment | Temperature of 5 to 40°C (41 to 104 °F) 35 to 80% relative humidity (no condensation) |
| Included Items | USB cable, AC adapter, Power cable, Cutting tool, Collet, Set screw, Spanners (7,10mm), Hexagonal wrench (size 2,3 mm), Positioning pins, Double-sided tape, Start-up page guidance card |
